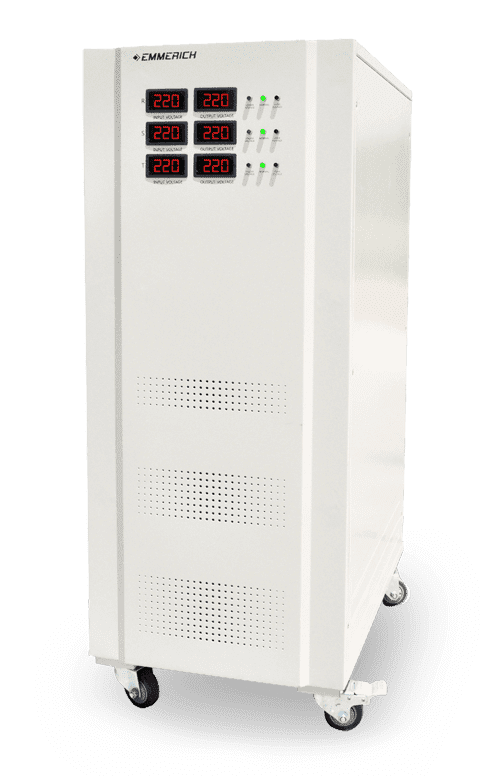

The Emmerich Stabilizer - Master Volt FT provides maximum protection and stable voltage for equipment with medium to large power. Designed for use in all types of electrical equipment, such as in offices, telecommunications, hospitals, industrial machines, and many more. The Emmerich Master Volt FT stabilizer is available in capacities of 6 - 9 - 15 - 22.5 - 30 - 50 - 60 - 90 kVA three phase input and output models.
The digital microprocessor controller system always monitors the input voltage continuously. If the voltage fluctuates, the controller will give a command to the relay combination system device to adjust the constant output voltage to the 220 V level with an accuracy level of 5%.

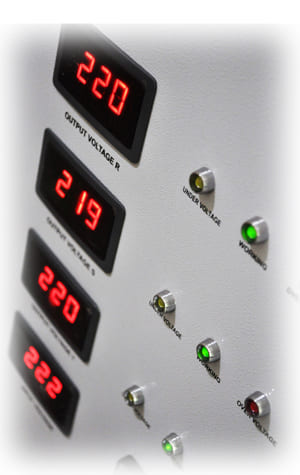

Designed to use a digital monitoring display to display Input-Output voltage in real time. Apart from that, we also added an LED indicator to make it easier for you to know whether the stabilizer status is in normal condition or under over voltage. Of course, with the Digital Display and LED indicators, everything is easier to read and more focused.

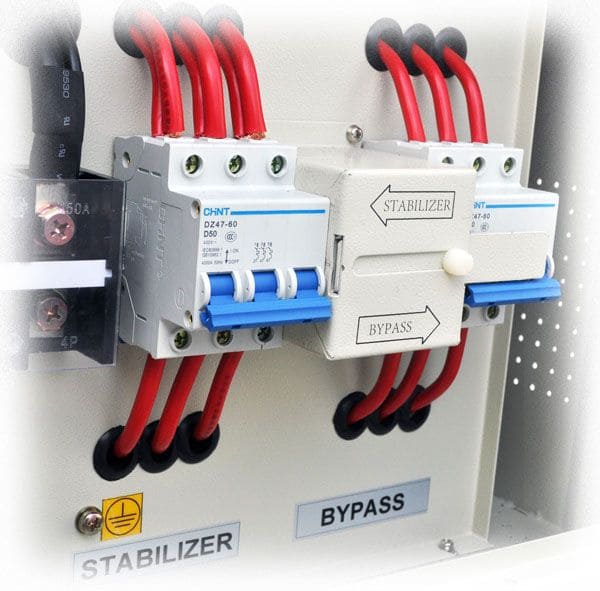

The bypass system is designed to be integrated in the stabilizer unit, now bypassing is easy, safe and practical. We reimagined the bypass system by using Easy Bypass, this system makes it much easier and safer for you to bypass when a problem occurs with the unit. You just need to select bypass or stabilizer mode.
You can save costs, no longer need additional costs to install bypass panels on your walls. And of course your walls will be more beautiful and clean without bypass panels.

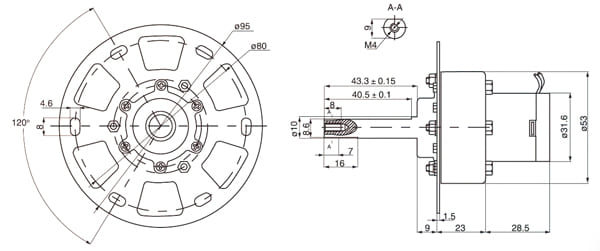

Master Volt FT uses DC servo motor technology specifically designed for use in Emmerich stabilizers. The motor mount is designed to match the mount on the torodial transformer winding so that it functions perfectly and also reliable. A reliable DC servo motor has strong torque and a fast response to move the carbon brush on the Toroidal Transformer to produce a stable and accurate electric voltage. The DC servo motor combined with a digital microprocessor controller makes this stabilizer always ready to produce a stable electric voltage.
Master Volt FT is designed with independent regulator technology on each phase and with an independent controller on each regulator. An independent regulator combined with an independent phase controller on each phase provides a maximum level of comfort and protection for 3 phase electrical equipment when the input voltage fluctuates unevenly in each electrical phase.
The Emmerich stabilizer is designed not only to stabilize electrical voltage, but also to provide full protection for the equipment we use. Master Volt FT is equipped with under-over voltage and phase failure protection features, the system will cut off if the electrical voltage is too high or too low at the input voltage, thus providing protection for the electrical equipment we use. The temperature trip protection feature is also embedded in the Master Volt FT, if the stabilizer experiences an overload resulting in excess heat, the heat sensor will work and give an order to the controller board to disconnect the stabilizer output from the electricity supply.
| Type | Master Volt FT |
| Capacity | 6 - 9 - 15 - 22,5 - 30 - 50 - 60 - 90 kVA |
| Input Voltage | 260 - 432 V |
| Output Voltage | 380 V |
| Number of Phase | 3 |
| Rated Frequency | 50/60Hz |
| Output Accuracy | 3% |
| Technology | Microprocessor with DC servo Motor |
| Insulation | Class H |
| Response Time | <0,1s |
| Efficiency | >98% |
| Auto Protection | Under Voltage, Over Voltage, Phase Failure |
| Cooling System | Automatic Fan |
| Wave Deformation | Nill |
| Operating Temperature | 0-40°C |
| Relative Humidity | 90% Non condensing |
| Isolation Transformer | Optional |
| Protection Degree | IP 20 |
Product Design, specification, dimension and colour can be changed anytime without advance notice. Please contact your nearest dealer/store for more information and details
